Service parts

Hitachi LANDCROS ZX35U-5N Service Parts

9 service parts from the Hitachi parts catalog for the ZX35U-5N: filters and elements with the current part number, the service interval in hours where Hitachi prints one, and the quantity per machine. 6 have a Hitachi price in our catalog. Confirm by serial number with Garton Parts before ordering.

Hitachi publishes no periodic replacement page for this machine. This list is pulled from the fuel tank, fuel line, hydraulic tank and pilot filter pages of the Hitachi parts catalog, so it can include filter assemblies and strainers that are not on a service schedule. Ask Garton Parts for the service kit by serial number.

Engine oil filters and air cleaner elements for this machine are Yanmar engine parts that the Hitachi parts catalog does not list. Ask the parts counter and we will pull them by serial number.

Interval not published means Hitachi lists the part without an hour figure, not that it never needs replacing. Your operator's manual has the schedule.

Source: Hitachi parts catalog wear-part pages, pulled 2026-09-04. Prices are Hitachi's published USD prices from our catalog.

Pick list0

Published intervals: 1,000 and 4,500 hours.

Hitachi LANDCROS ZX35U-5N periodic replacement drawing, Fuel tank — Fig 1: Fuel tank

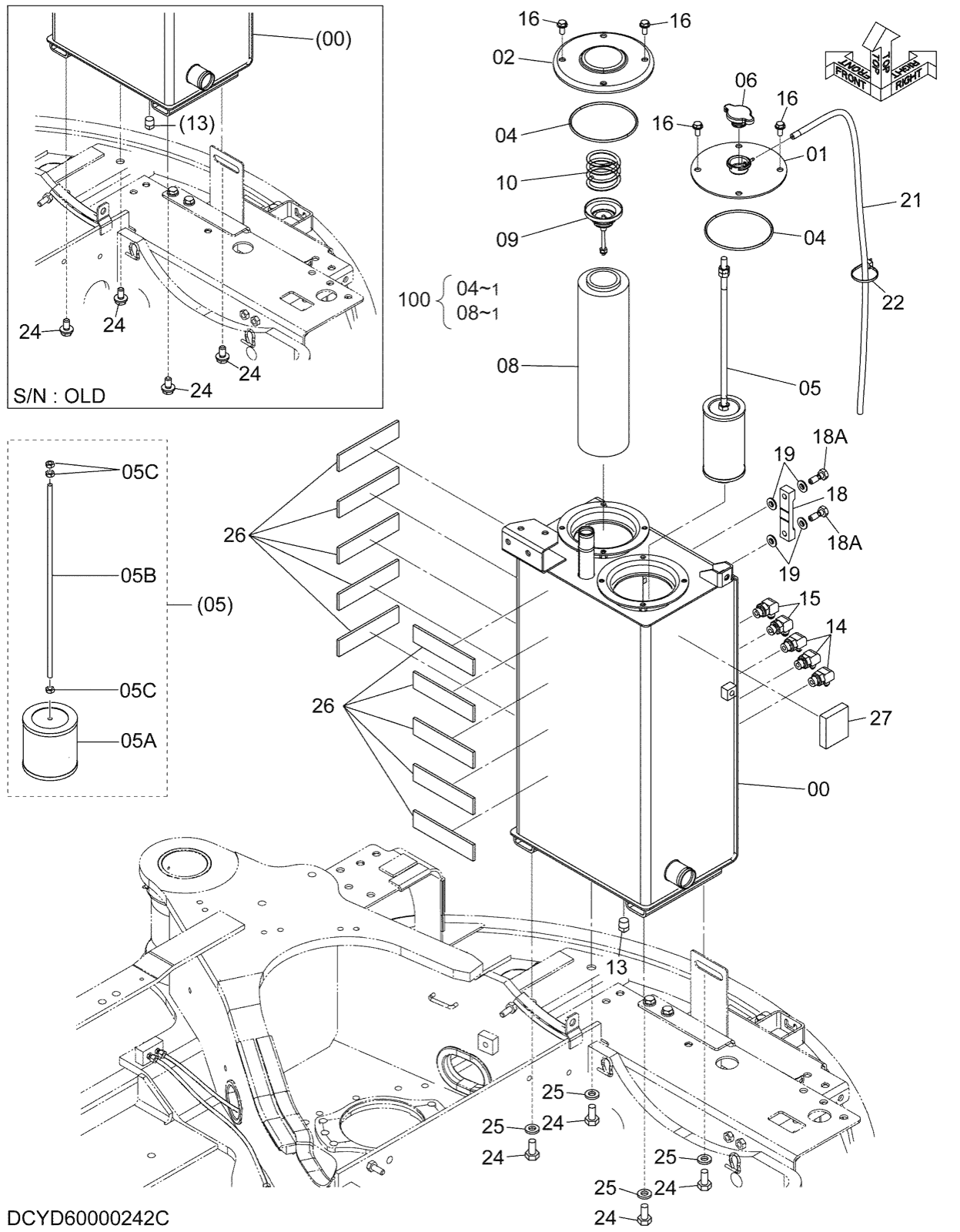

Hitachi LANDCROS ZX35U-5N periodic replacement drawing, Oil tank — Fig 2: Oil tank

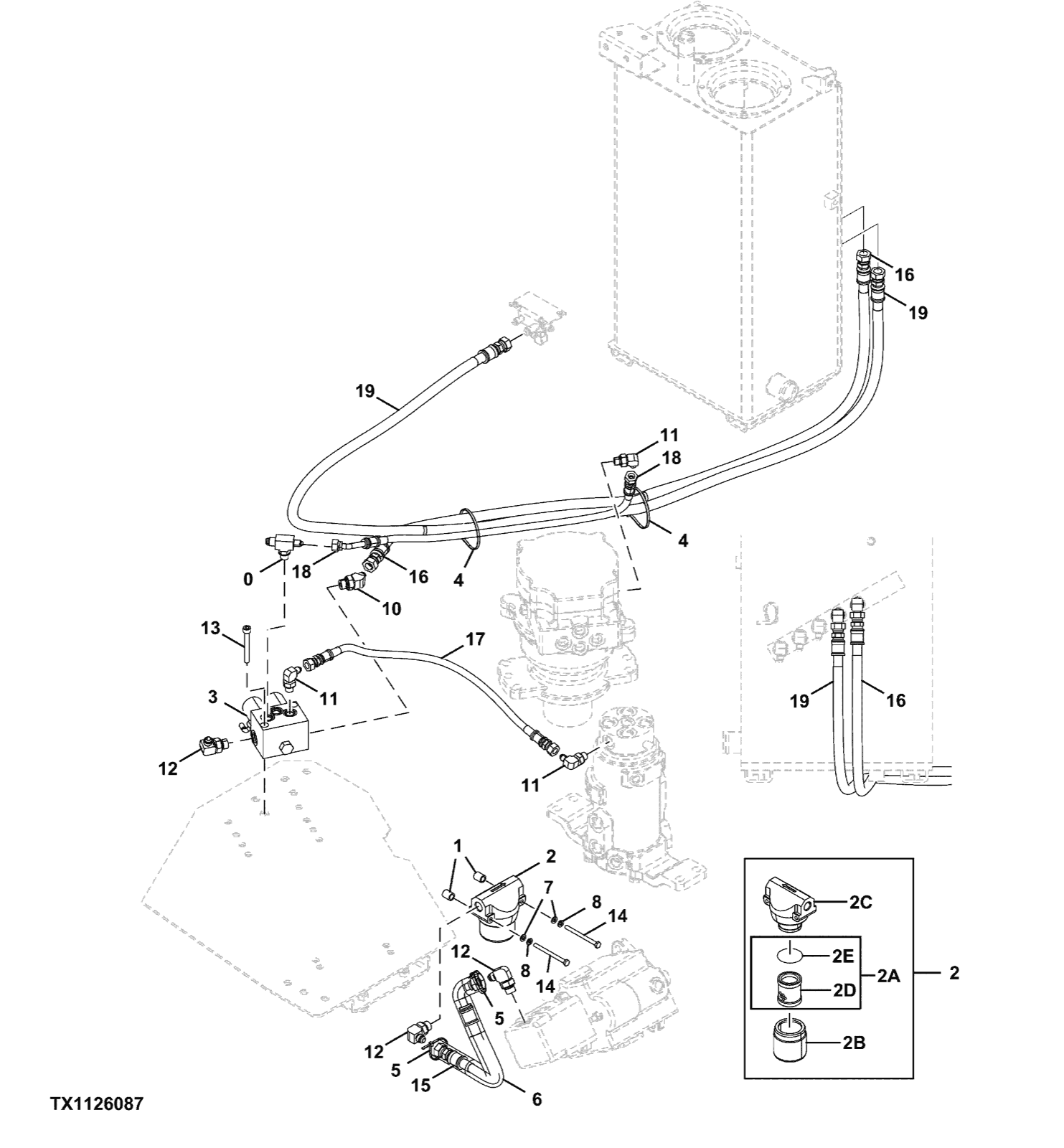

Hitachi LANDCROS ZX35U-5N periodic replacement drawing, Pilot lines (swing motor, center joint, control valve, oil tank) — Fig 3: Pilot lines (swing motor, center joint, control valve, oil tank)

Fuel

Fuel parts Hitachi schedules for the ZX35U-5N
Part number	Description	Qty per machine	Interval	Ref	Price
4472918formerly listed as 4442449	FILTER	1 per machine	Interval not published	Fig 1, ref 01C, 1C	$36.95
DY119802-55801formerly listed as YNM129004-55801	FILTER	1 per machine	Interval not published	Fig 4, ref 3	Quote on request
YNM129242-55730	ELEMENT	1 per machine	Interval not published	Fig 4, ref 14	$13.22 each

Hydraulic

Hydraulic parts Hitachi schedules for the ZX35U-5N
Part number	Description	Qty per machine	Interval	Ref	Price
4129280	Full-flow filterELEMENT;FILTER	1 per machine	Every 4,500 hours	Fig 2, ref 08	Quote on request
4617512	STRAINER	1 per machine	Interval not published	Fig 2, ref 05A	$59.16 each
YD00000766	FILTER;SUCTIONHitachi no longer recommends ordering this number. The parts counter will confirm the current one.	1 per machine	Interval not published	Fig 2, ref 05	Quote on request
YD00012034	Filter element (with O-ring)ELEMENT;FILTER	1 per machine	Interval not published	Fig 2, ref 08, 100	$97.43

Pilot

Pilot parts Hitachi schedules for the ZX35U-5N
Part number	Description	Qty per machine	Interval	Ref	Price	Add to pick list
YD00011691formerly listed as 4294130	Pilot oilFilter Element	1 per machine	Every 1,000 hours	Fig 3, ref 2A, 2D, 47A, 47D	$37.69 each
4457683	Pilot oilFilter	1 per machine	Interval not published	Fig 3, ref 2, 47	$50.25 each

Other Hitachi Excavators

Search the full catalog for anything not on this list, or open your pick list to send it to Garton Parts.

For the exact kit for your serial number, call Garton Parts at 1-877-TRACTOR.
