Hitachi LANDCROS ZX17U-5N Service Parts

10 service parts from the Hitachi parts catalog for the ZX17U-5N: filters and elements with the current part number, the service interval in hours where Hitachi prints one, and the quantity per machine. 7 have a Hitachi price in our catalog. Confirm by serial number with Garton Parts before ordering.

Hitachi publishes no periodic replacement page for this machine. This list is pulled from the fuel tank, fuel line, hydraulic tank and pilot filter pages of the Hitachi parts catalog, so it can include filter assemblies and strainers that are not on a service schedule. Ask Garton Parts for the service kit by serial number.

Air cleaner elements for this machine are Yanmar engine parts that the Hitachi parts catalog does not list. Ask the parts counter and we will pull them by serial number.

Interval not published means Hitachi lists the part without an hour figure, not that it never needs replacing. Your operator's manual has the schedule.

Source: Hitachi parts catalog wear-part pages, pulled 2026-09-04. Prices are Hitachi's published USD prices from our catalog.

Pick list0

Published intervals: 500, 1,000, 1,500, 2,500 and 4,000 hours.

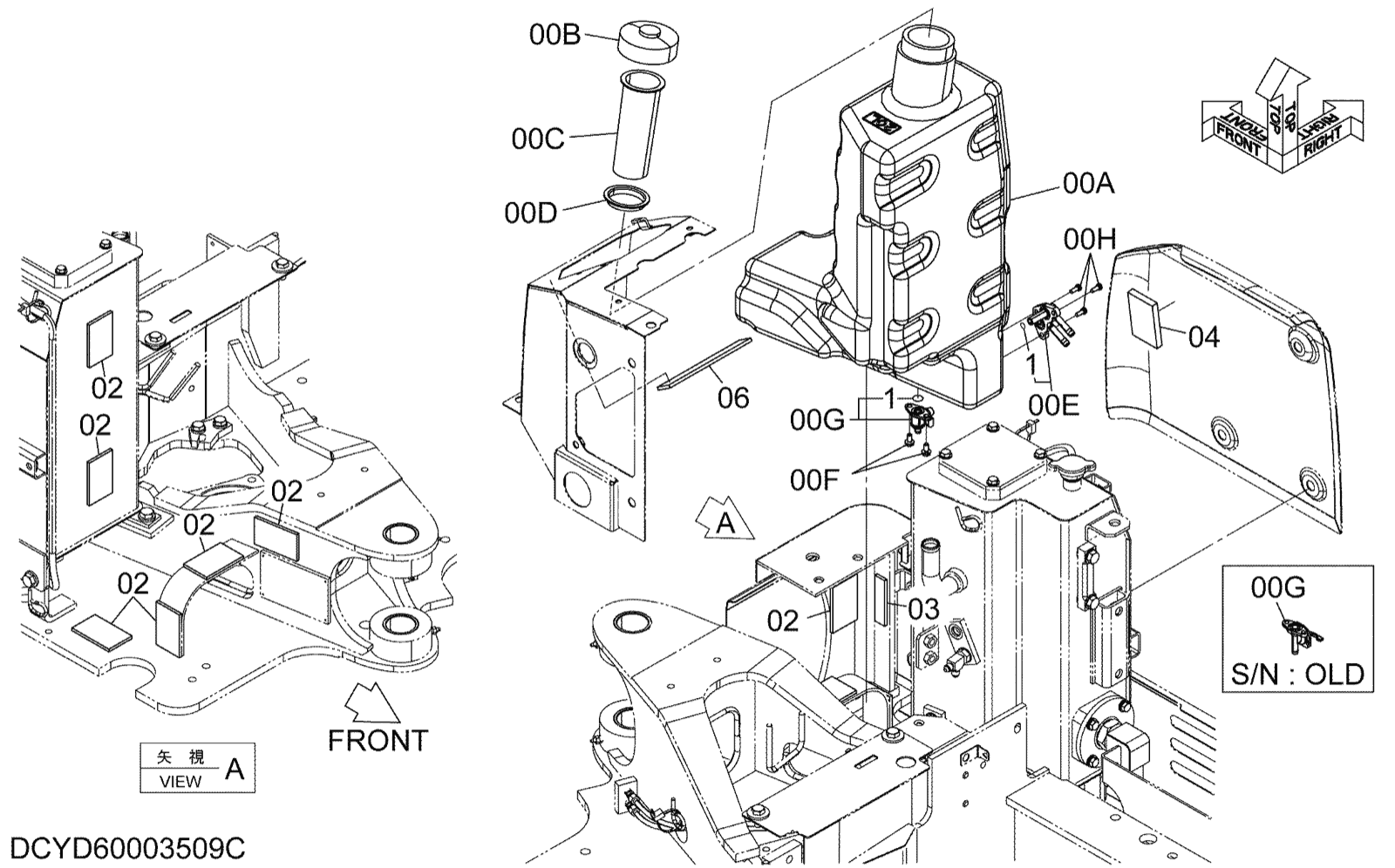

Hitachi LANDCROS ZX17U-5N periodic replacement drawing, Fuel tank
Fig 1: Fuel tank

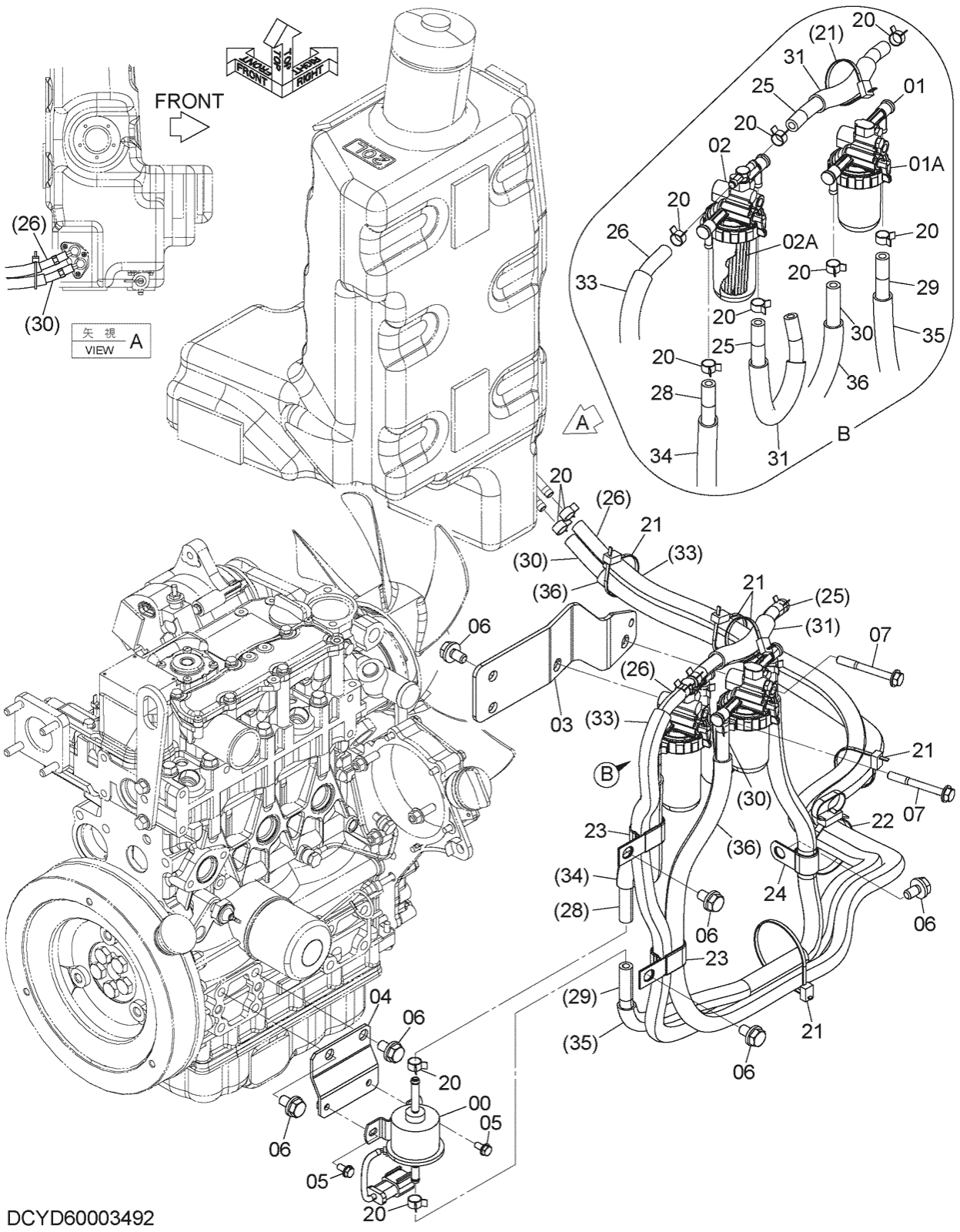

Hitachi LANDCROS ZX17U-5N periodic replacement drawing, Fuel piping
Fig 2: Fuel piping

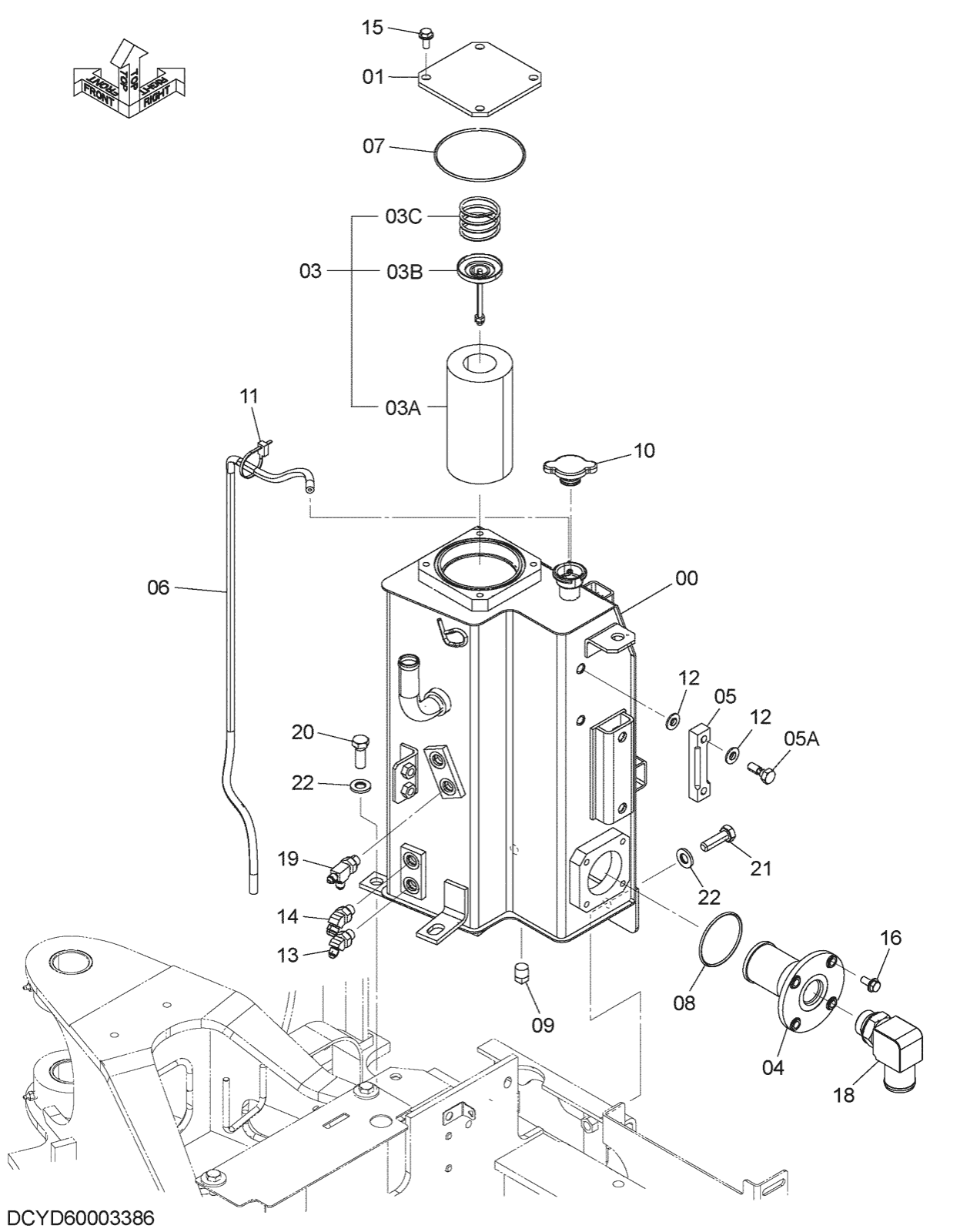

Hitachi LANDCROS ZX17U-5N periodic replacement drawing, Oil tank
Fig 3: Oil tank

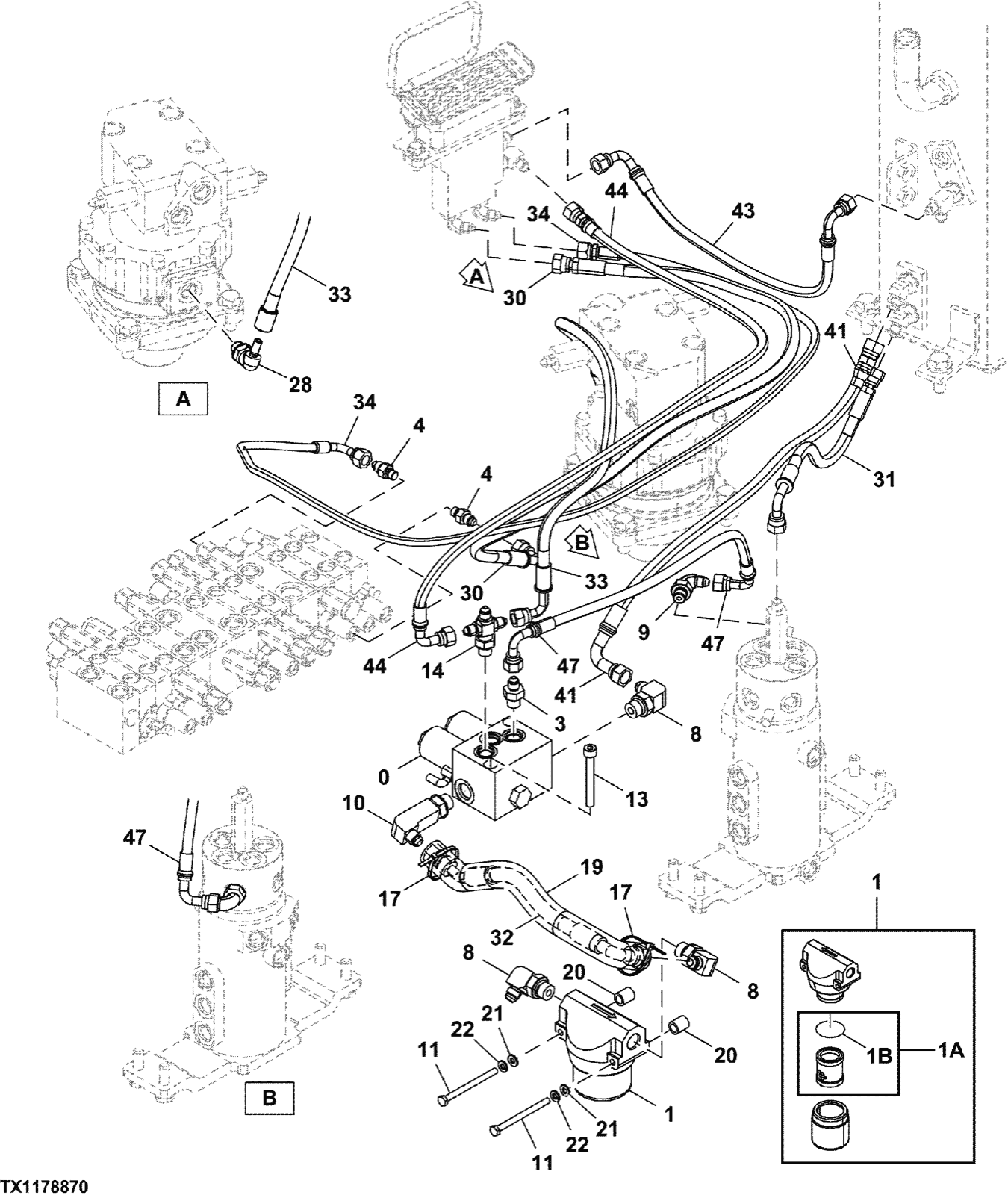

Hitachi LANDCROS ZX17U-5N periodic replacement drawing, Pilot lines, filter, and bypass valve
Fig 4: Pilot lines, filter, and bypass valve

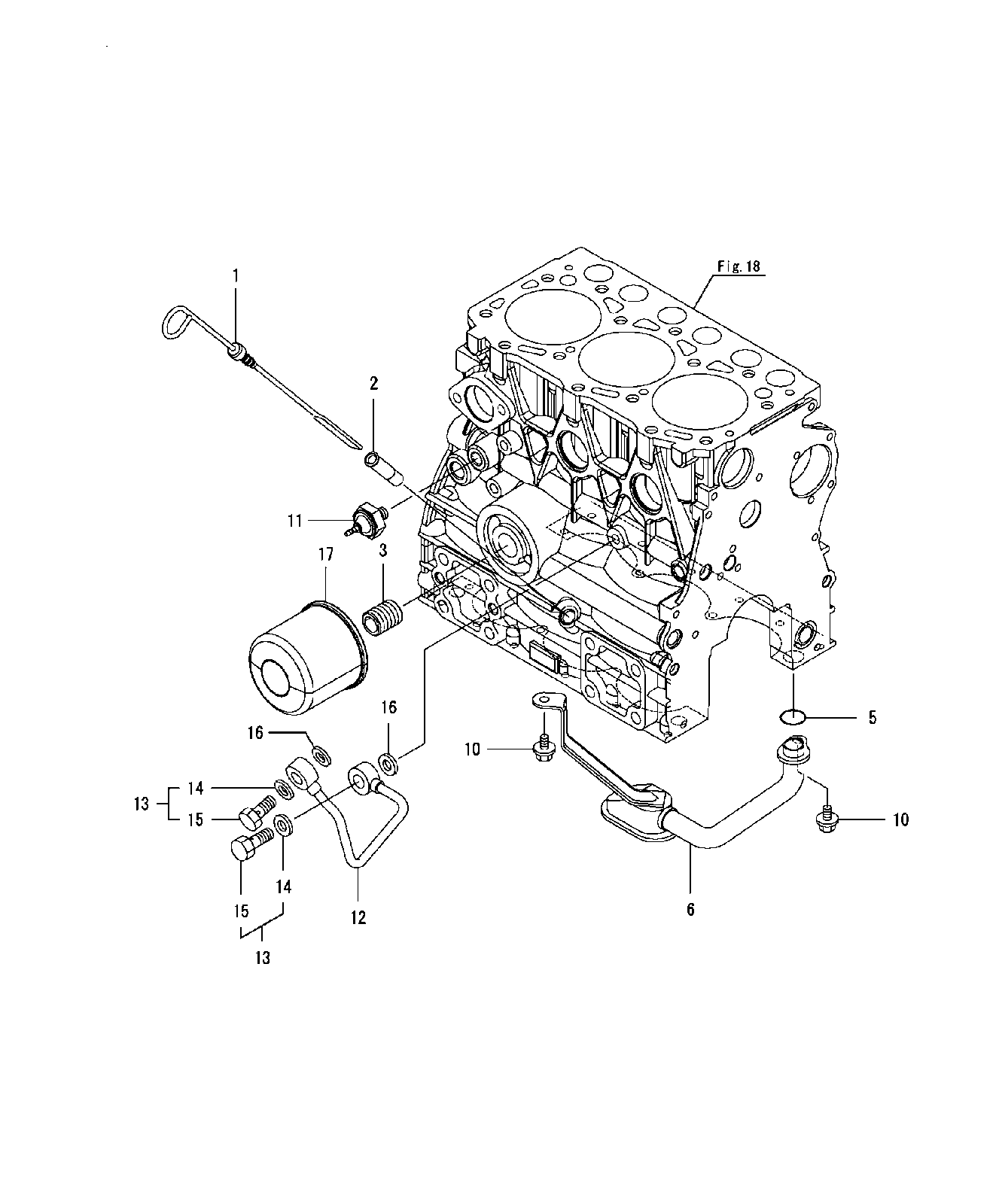

Hitachi LANDCROS ZX17U-5N periodic replacement drawing, Lub. oil system
Fig 5: Lub. oil system

Engine oil

Engine oil parts Hitachi schedules for the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119305-35151formerly listed as 4661289FILTER ASSY, D68XL651 per machineEvery 1,500 hours (1,000 to 1,500)Fig 5, ref 17$12.38

Fuel

Fuel parts Hitachi schedules for the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119833-55650formerly listed as YD00009610ELEMENT;FILTER1 per machineEvery 1,000 hoursFig 2, ref 02A, 6$26.54 each
YNM129335-55780formerly listed as YD00009611ELEMENT;FILTER1 per machineEvery 2,500 hoursFig 2, ref 01A, 19$14.46 each
YNM119833-55630formerly listed as 4664737FILTER;FUEL1 per machineEvery 4,000 hoursFig 2, ref 02, 3Quote on request
4472918formerly listed as 4442449FILTER1 per machineInterval not publishedFig 1, ref 00C, 0C$36.95
4608250STRAINER1 per machineInterval not publishedFig 1, ref 00E, 0EQuote on request

Hydraulic

Hydraulic parts Hitachi schedules for the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4692230formerly listed as 4442446 and 4454705FILTER;RETURN1 per machineEvery 500 hoursFig 3, ref 03, 03A$47.78 each
4479355FILTER;SUCTIONHitachi no longer recommends ordering this number. The parts counter will confirm the current one.1 per machineInterval not publishedFig 3, ref 04Quote on request

Pilot

Pilot parts Hitachi schedules for the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YD00011691formerly listed as 4294130Pilot oilFilter Element1 per machineEvery 1,000 hoursFig 4, ref 1A$37.69 each
4457683Pilot oilFilter1 per machineInterval not publishedFig 4, ref 1$50.25 each

Other Hitachi Excavators

Search the full catalog for anything not on this list, or open your pick list to send it to Garton Parts.

For the exact kit for your serial number, call Garton Parts at 1-877-TRACTOR.
